| Specification | Details |

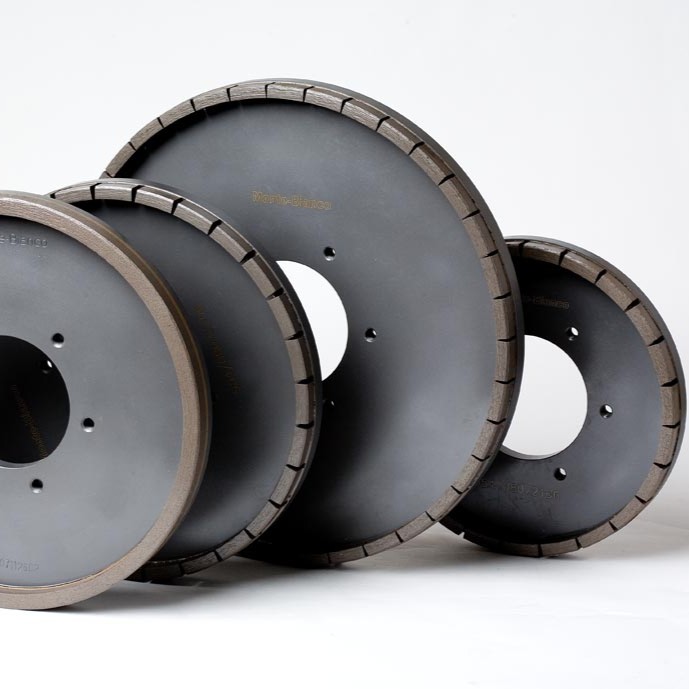

| Product Name | Diamond Squaring Wheel |
| Application | Tile edge squaring, rectification, calibration |
| Bond Type | Metal bond |
| Outer Diameter | 200 mm / 250 mm / 300 mm (common sizes) |
| Inner Bore Diameter | 50 mm / 60 mm / 80 mm (customizable) |
| Segment Width | 6 mm to 12 mm |
| Segment Height | 10 mm to 15 mm |
| Grit Size Range | 36 to 120 (coarse to fine squaring) |
| Body Material | Steel or Aluminum core with laser-welded diamond segments |
| Usage Type | Wet operation (with coolant) |
| Max Operating Speed | 2800 – 4500 RPM (depends on size and machine) |
| Working Surface | Vitrified tiles, ceramic tiles, porcelain tiles |
| Performance | High edge precision, minimal chipping |
| Durability | 5000 – 15000 m² (depends on tile hardness and usage) |
| Machine Compatibility | Squaring and chamfering machines in tile manufacturing lines |
| Cooling Requirement | Water-cooled |
| Finish Quality | Smooth, sharp, straight edges |
